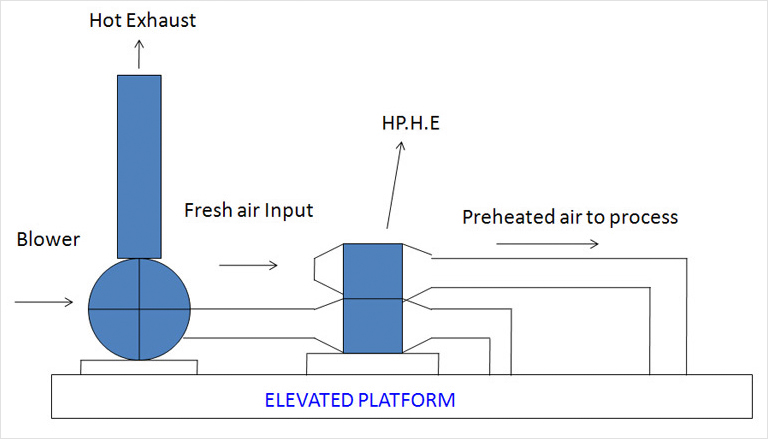

| Mahindra & Mahindra Heat recovery from the sealer oven exhaust |
|||
| Exhaust quantity | 6000 m3/hr | ||
| Temperature of the exhaust | 1600C | ||
| Fresh air quantity | 4500 m3/hr | ||
| Maximum temperature achieved | 850C | ||
| Energy recovered | 65,000 kcal/hr | ||
| L.P.G. saving | 6.5 kg/hr | ||
| System installed on | 1st July, 2009 | ||
| Bajaj Auto Waluj Heat recovery from the sealer oven exhaust |
|||
| Heat recovery from the E.D.oven exhaust | |||

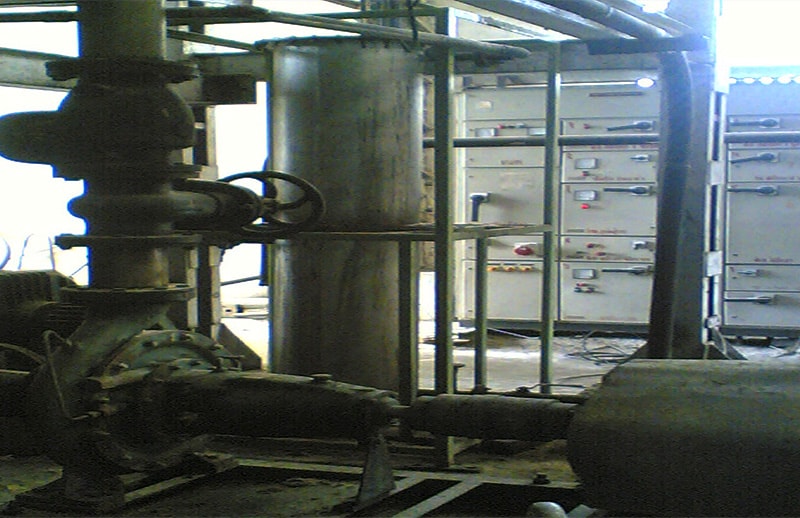

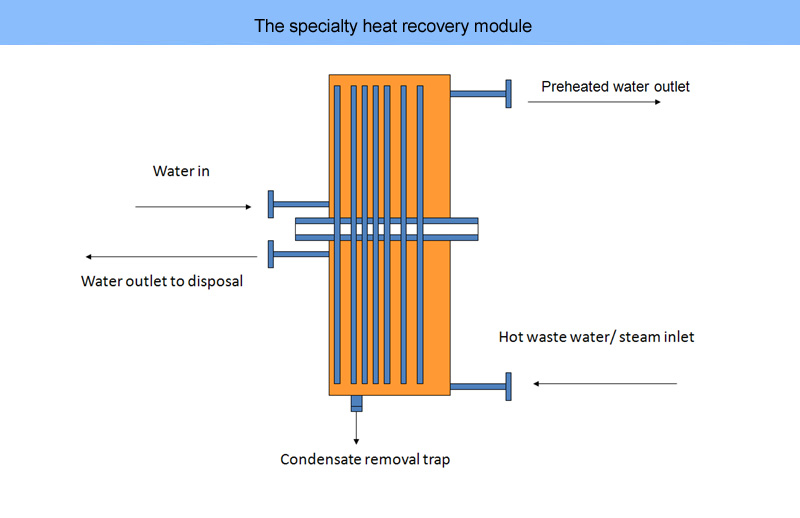

| Preheating of process water | |||
| Quantity of water heated | 4500 lits/hr | ||
| Maximum temperature achieved | 850C | ||
| Inlet water temperature | 550C | ||
| Energy recovered | 45,000 kcal/hr | ||
| L.P.G. saving | 4.5 to 5 kg/hr | ||
| System installed on | 10th April, 2009 | ||
